Fig. 2
From: Altered Extracellular Vesicle MicroRNA Expression in Ischemic Stroke and Small Vessel Disease

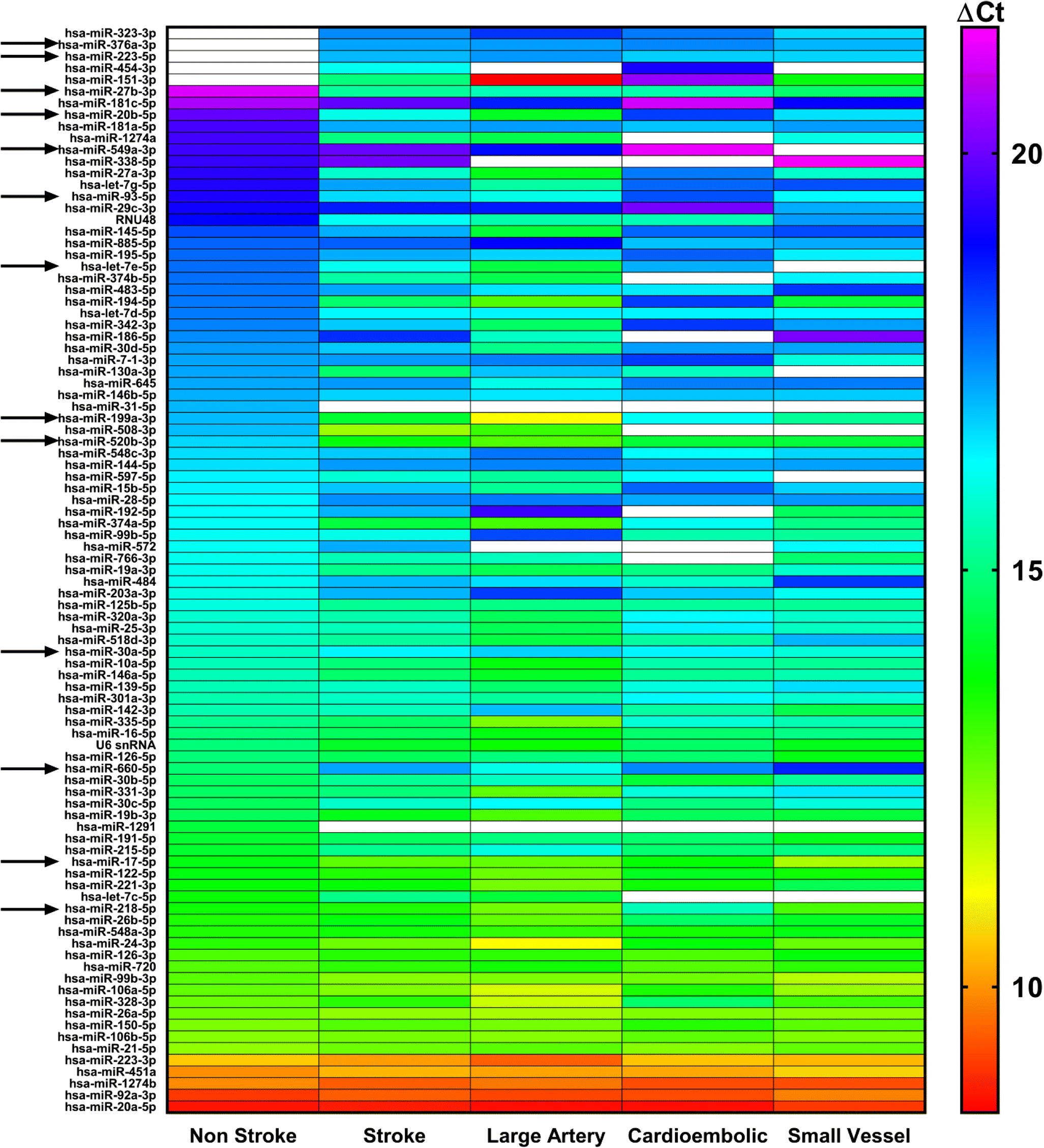

EV Expression of miRNAs Altered in Stroke Patients (OpenArray™). miRNA expression in EV from serum of control non-stroke patients (n = 10), all stroke patients (n = 29) and stroke patients separated by TOAST subtype: large artery (n = 9), cardioembolic (n = 10) and SVD (n = 10) stroke patients. Changes in EV miRNA expression were assessed by OpenArray™, data shown are average ΔCt values following normalisation to spike housekeeper, ath-miR-159a. Arrows indicate miRNAs taken forward for further investigation
