Fig. 6

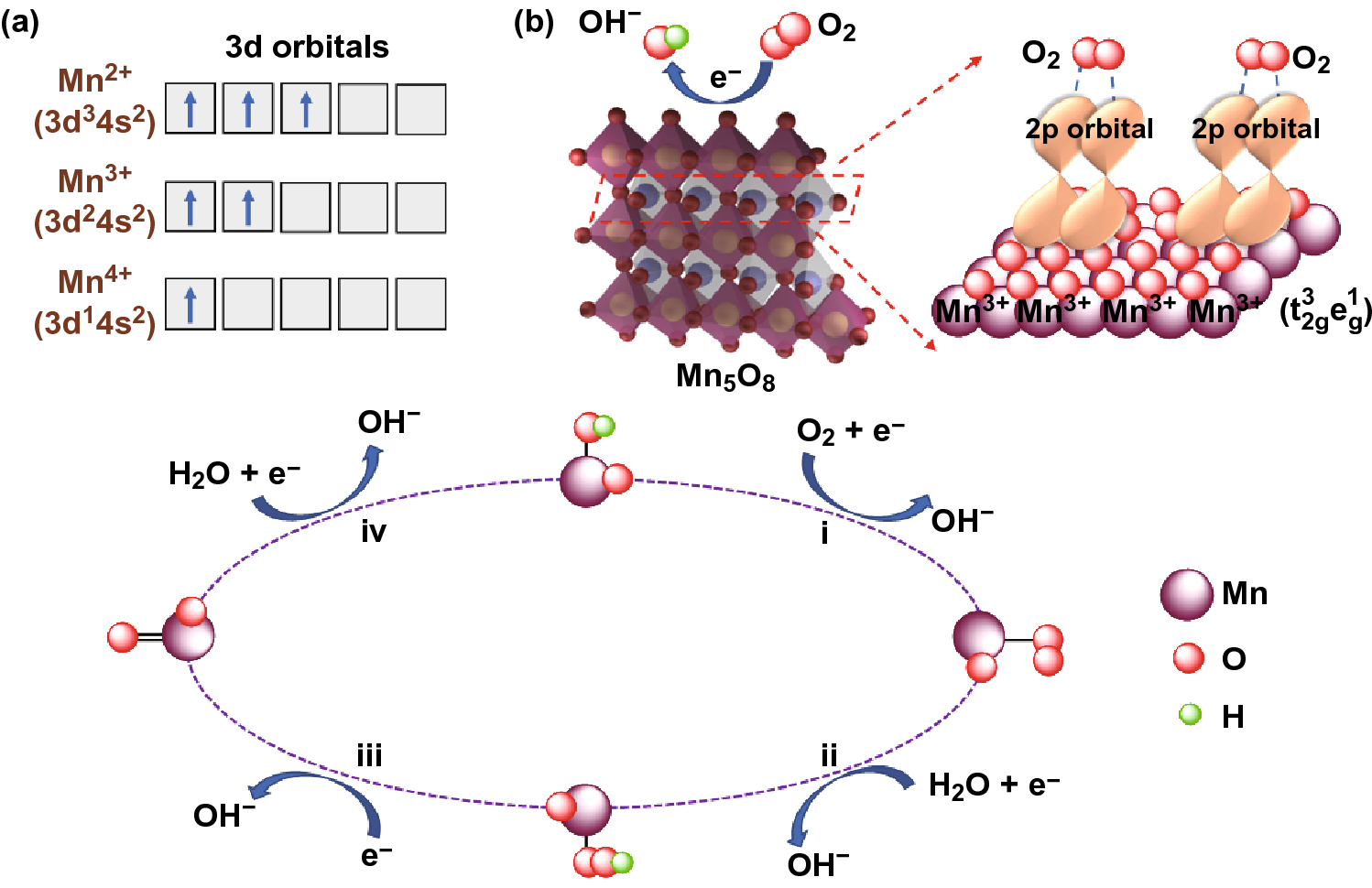

a Occupied states of 3d orbitals for Mn2+, Mn3+ and Mn4+. b Lattice structure of Mn5O8 (yellow: Mn4+; blue: Mn3+) and the ball-stick model of the O2 molecule adsorptions on the surface. c Possible four-electron reaction mechanism for MnOx in ORR process
