Abstract
CT and MRI are the crucial tools in the imaging assessment of pancreatic diseases. They allow a comprehensive insight into the normal and pathological structural and to some degree even functional conditions of the pancreas and its surrounding. In consequence, most of the pancreatic diseases can be identified and classified by CT and MRI. The most common findings—the adenocarcinoma of the pancreas and acute and chronic inflammation of the pancreas—are usually easily identified and imaging contributes to the correct staging and detecting potential complications of the disease. Moreover, modern imaging enables the differentiation of non-neoplastic, developmental disorders, solid, cystic, focal, and diffuse parenchymal findings which may range from neoplasia like over true neoplasia to inflammatory tumor-like changes and is of crucial importance to guide an appropriate therapy.
You have full access to this open access chapter, Download chapter PDF
Similar content being viewed by others
Keywords
- Pancreas
- Pancreatic neoplasm
- Pancreatic carcinoma
- Cystic pancreatic neoplasm
- Solid cystic pancreatic neoplasm
- Mucinous cystic pancreatic tumors
- IPMN
- Pancreatic neuroendocrine tumors
- PanNEN
- Pancreatitis
- Autoimmune pancreatitis
- AIP type1/2
-
To understand typical imaging criteria to identify and differentiate solid and cystic pancreatic struc-tural changes and neoplasia.
-
To understand the limitations of imaging in complex pancreatic diseases and
-
To appreciate the importance of additional clinical information.
Modern cross-sectional imaging with high spatial and contrast resolution allows a perfect delineation of the pancreas in its retroperitoneal home. The organ typically presents itself with a length between 12 and 15 cm and a diameter at the head area of about 2.5 cm, at the body of about 2 cm, and at the tip of the pancreatic tale of about 1.5 cm. Anatomically, the pancreatic head is defined as the area to the right of the left border of the superior mesenteric vein, the body as the area between the left border of the superior mesenteric vein and the left border of the aorta, and the tail as the area between left border of the aorta and the hilum of the spleen. The normal pancreatic duct ranges between 1.5 mm at the tail to 3 mm at the head.
Usually (ca. 60% of cases) the pancreatic main duct (duct of Wirsung), the duct of Santorini, and the common bile duct join together within the pancreatic head, entering the duodenum via the papilla of Vater.
Several conditions that affect the function and integrity of the pancreas, as developmental anomalies, neoplastic and inflammatory diseases will be discussed.
9.1 Developmental Anomalies of the Pancreas
During embryogenesis, the pancreas is formed from a larger, dorsal bud (tail, body, parts of the head) and a small, ventral bud (rest of the head). The ventral bud migrates downwards dorsal from the dorsal bud. During the union of both the buds, the main pancreatic duct within the ventral bud ends via the duct of Santorini in the minor papilla. This duct gets then reduced to an accessory duct, whereas the main pancreatic duct of the dorsal bud merges with the duct of the former ventral bud ending in the major papilla [1, 2]. The disturbed union of the two buds can cause three major anomalies.
Pancreas divisum, a non-union anomaly of the pancreas is found in autopsy studies with a frequency of 1 to 14%, and is characterized by the separate drainage of the main pancreatic duct via the duct of Santorini into the minor papilla, and of the duct of Wirsung into the major papilla. Only 1% of individuals with pancreas divisum will develop unspecific abdominal symptoms (abdominal discomfort, most likely caused by recurrent episodes of mild pancreatitis). Therefore—without real proof—some authors consider pancreas divisum a promoting factor for pancreatic tumors based on recurrent and lately chronic focal pancreatitis [3].
In pancreas annulare, the-non-migration of the ventral bud of the pancreas causes the ventral and dorsal bud forming a ring around the duodenum. This rare anomaly (estimated prevalence 0.01%) can be associated with other birth deformities as congenital duodenal atresia, mesenterium commune, oral facial defects, and Down’s syndrome. Clinical signs are determined by stenosis and occlusion of the duodenum.
To reveal a union/migration anomaly of the pancreas, in most of the cases MRCP will add the crucial information of the distorted duct configuration.
The generally asymptomatic ectopic pancreatic tissue can be found in the stomach, duodenum, and ileum, very rarely in Meckel’s diverticulum, gall bladder, bile duct, and spleen, whereas autopsy studies reveal a frequency between 0.6 and 15%. Typically, pancreatic ectopic tissue is detected by endoscopy.
Total agenesis of the pancreatic gland, hypoplasia of the pancreas (partial agenesis), congenital pancreatic cysts (dysontogenetic cysts, hamartosis), multiple congenital cysts associated with von Hippel-Lindau disease (cysts also in the liver and kidneys), and also cystic degenerative transformation of the pancreas in cystic fibrosis are in general rare and are identified by MRI, as well as by sonography and CT, based on the partial or complete missing of the organ or by solitary or multiple cysts [2, 4].
Key Point
The majority of pancreatic anomalies are asymptomatic. MRI and MRCP are superior in identifying the structural variants and to exclude suspected neoplastic conditions.
9.2 Pancreatic Neoplasms
Pancreatic tumors can be classified according to their cellular origin, enzymatic activity, and their benign or malignant potential. The most recent WHO classification (2010, revised 2012 und 2017) divides pancreatic tumors into primary epithelial and mesenchymal tumors, lymphomas, and secondary tumors; from a clinical-practical point of view tumor like lesions can be added (Table 9.1). In clinical reality, many of the rare and very rare tumors have no specific imaging appearance and can be differentiated only pathologically.
9.2.1 Pancreatic Carcinoma
Exocrine pancreatic carcinoma arising from ductal, acinar, and their stem cells accounts for 85–95% of all malignant pancreatic tumors (15–20% in gastrointestinal malignancies, 3% in all carcinomas), whereas most of the various subtypes of pancreatic carcinoma can be differentiated only by histo- and immunopathology. In general, the tumors are located predominantly in the pancreatic head (60–70%; body: 15% and tail: 5%). A multifocal or diffuse tumor spread is uncommon. The prognosis is poor—slightly better in mucinous, non-cystic CA, and worse in adenosquamous CA—since most tumors are detected late in an advanced stage of spread. An early metastatic spread along perivascular, ductal, lymphatic, and perineural pathways is promoted by the absence of a true capsule around the organ.
For detection, staging and follow-up after treatment endoscopic ultrasound, contrast-enhanced CT, MRI, and FDG-PET may be applied, whereas endoscopic ultrasound presents the highest accuracy in detecting small pancreatic head and periampullary tumors, and FDG-PET in detecting distant metastatic spread. Nevertheless, CECT and MRI provide a sufficient and comprehensive display of the primary tumor and its sequalae with an accuracy of about 90% and even more [7,8,9].

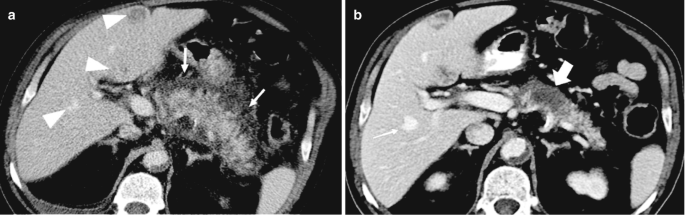

The imaging appearance of common pancreatic adenocarcinoma is determined by its typically dense, fibrous, low vascularized stroma resulting in low soft-tissue density in CT and low signal on T1-weighted and T2-weighted in MRI, and no or only minor contrast enhancement (Fig. 9.1) what makes the tumors best delineable to the normal glandular parenchyma on CE-imaging.
The pancreatic duct maybe involved depending on the primary tumor localization within the pancreas ranging from no duct involvement at all in peripheral tumors, over segmental obstruction due to intraductal tumor invasion (duct penetrating sign), to obstruction of both pancreatic and common bile duct (double duct sign) in pancreatic head tumors. The relation between tumor and ducts is non-invasively seen best on MRCP.
Assessing potential invasive local growth, metastatic spread to local and regional lymph nodes, to the liver, and vascular invasion, completes staging of pancreatic malignancies (Fig. 9.1).
Not well-defined tumor margins and blurred surroundings are still a challenge for every imaging modality since microscopic local invasive peritumoral spread and an inflammatory desmoplastic reaction can often not be differentiated causing over- or underestimation of the T-stage of the tumor [10].
At the time of diagnosis of the primary, about two thirds of the patients will present distant metastases (lymph node metastases 40%, hematogenous metastases to the liver 40%, peritoneal metastases 35%) which will be detected with accuracies above 90% by CE-MRI and FDG-PET-CT [11, 12]. Non-resectability in pancreatic cancer is determined by vascular encasement of the superior mesenteric artery, the celiac trunk, hepatic or splenic artery, and peripancreatic veins which is very likely if a vessel circumference is encased more than 50% (typical signs: decreased vessel caliber, dilated peripancreatic veins, teardrop shape of superior mesenteric vein present).
9.2.2 Other Tumors of Ductal Origin
This heterogeneous group of tumors embrace cystic neoplasms, tumors neuroendocrine components, and a variety of very rare tumors as pancreatoblastoma and solid-pseudopapillary neoplasm.
Key Point
Pancreatic adenocarcinoma is the most common malignancy of the pancreas. CT and MRI are the established imaging tools for diagnosing the primary, staging the extent of the disease and to establish operability.
9.3 Cystic Neoplasm
In modern high-resolution imaging, pancreatic cysts are a common finding by MRI (~20%) and CT (~3%). Due to the slightly increased risk of malignancy in incidental cysts, mainly in the younger than 65 of years, incidentally found pancreatic cysts have to be assessed carefully without exaggerating unnecessary therapeutical consequences [13, 14].
9.3.1 Serous Cystadenoma
Serous cystic neoplasms are accounting for about 50% of all cystic tumors including serous cystadenomas, serous oligocystic adenomas, cystic lesions in von Hippel-Lindau syndrome, and rarely serous cystadenocarcinomas [15, 16].
The most common subtype is the benign serous cystadenoma (microcystic type), typically in elderly women (60–80 years of age). In most cases, the lesion is located in the pancreatic head, composed of multiple tiny cysts, separated by thin septae. Spotty calcifications and a central stellate nidus might be present (Fig. 9.2).
About 10% of all serous cystic tumors present as an oligocystic variant with only a few cysts of 2 to 20 mm diameter and a higher prevalence in men (30–40 years).
The rare cystadenocarcinomas are usually large at clinical presentation already with local invasive growth and metastases to lymph nodes and liver.
The diagnosis of serous cystic lesions of the pancreas by imaging is ruled by the proportion of small cysts and septae without contrast enhancement what may create an almost solid impression in CT, whereas the cystic components still can be best appreciated by MRI. Even if the tumors can grow rather large the mismatch of tumor size, missing both ductal involvement and secondary signs of malignancy will direct to the right diagnosis.
For the differentiation of oligocystic adenomas from mucinous cystic tumors, IPMN or walled-off cysts tumor localization, an “empty” clinical history, and normal ducts in MRCP can be helpful [17, 18].
9.3.2 Mucinous Cystic Neoplasm (MCN)
Mucin-producing cystic tumors, typically in middle-aged women (f:m = 19:1), are characterized by a missing connection to the pancreatic ducts and the histological presence of an ovarian-like stroma. In comparison to SCN, MCN are less frequent (10% of all cystic pancreatic lesions), in general asymptomatic, detected as solitary, large lesions arising in the body and tail of the pancreas (95%), and composed of only few cysts with pronounced septae. Since the cysts may contain mucinous, hemorrhagic, necrotic, jelly-like content they may present intermediate and higher densities and signal intensities on CT and MRI whereas T2-weighted MRI displays the true cystic structure of the tumor the best. Nodular enhancement of the septae is indicating potential malignancy which occurs in up to 30% of MCN [17,18,19].
9.3.3 Intraductal Papillary Mucinous Neoplasm (IPMN)
Due to increased detection rates by high-resolution imaging IPMN is considered the most common cystic neoplasm of the pancreas, seen more often in men than in women.
IPMNs may affect the main duct (28%), side branches (46%), or both duct components (26%) based on a mucin-producing neoplasm arising from the ductal epithelium. The side branch type can be found as a solitary or multifocal duct dilatation all over the pancreas and may also form a system of cystic dilated ducts that may mimic a microcystic appearance as in SCN. Segmental or general dilatation is typical for the main duct type creating a chronic pancreatitis like appearance. In such cases, patients’ history is the crucial differential diagnostic information.
Since main duct type IPMN and MCN have a low malignant potential a thorough follow-up regimen should be recommend in non-surgical cases (Table 9.2).
Key Point
MRI is the superior imaging method allowing the detailed characterization of cystic lesions and neoplasia of the pancreas.
9.4 Other Neoplasm
9.4.1 Neuroendocrine Tumors
The WHO (2010, last modification 2017, unchanged in 2019) classified these tumors mainly according to their grading (well—moderately—poor differentiated) and their hormonal activity (PanNEN: pancreatic neuroendocrine neoplasm), as well as the Ki67 proliferative index.
In general, these tumors are rare and account for about 5–7% of all pancreatic tumors with the most common subtypes being insulinoma, glucagonoma, and nonhormonal active tumors. If a specific hormone release is not the leading clinical sign, also imaging features of various PanNEN are often rather similar what makes immuno-histochemical staining a crucial issue (Fig. 9.3) [27, 28].
9.4.1.1 Insulinoma
The presentation of insulinomas—the most common PanNEN (60%)—is determined by hyperinsulinism (Whipple triad: starvation attack, hypoglycemia after fasting, and relief by i.v. dextrose). The majority of tumors are solitary (95%), small (<2 cm), hypervascularized with a peripherally pronounced enhancement, and localized in the pancreatic body and tail [29].
9.4.1.2 Gastrinoma
Gastrinoma is the second most common PanNEN (20–30%) clinically associated with the Zollinger—Ellison syndrome (peptic ulcer disease, diarrhea) due to the massively elevated gastrin blood levels. At detection, the tumors usually present with a moderate size (mean 3 cm, ranging from 0.1–20 cm) and in half of the cases with multiple nodules. The vast majority of gastrinomas will arise within the gastrinoma triangle determined by the confluence of the cystic and common bile duct, the junction of the second and third portions of the duodenum, and the junction of the neck and body of the pancreas. On imaging, gastrinomas are revealed as mainly solid tumors with intermediate densities and signal intensities on both CT and MRI with moderate to strong contrast enhancement. Even if about 60% of the tumors are malignant, extensive metastatic spread is rare [30].
9.4.2 Other Rare Pancreatic Neoplasm
Beside the above displayed neoplasms, there is still a wide variety of pancreatic tumors which—in general—can be differentiated only by specific immunohistologic staining. This rare tumors comprise a number of variably differentiated neuroendocrine tumors inclusively mixed neuroendocrine non-neuroendocrine tumors, mostly without functional activity, rare malignant pancreatoblastoma in children (a large, encapsulated tumor in the pancreatic head often associated with elevated alpha-fetoprotein levels and metastases to liver and lymph nodes), acinar cell carcinoma (relatively large tumors in elderly men with an imaging appearance similar to pancreatic adenocarcinomas and potential excessive release of serum lipase followed by focal panniculitis and polyarthritis as diagnostic hint), and solid pseudopapillary tumor (of mainly young women (frequently incidental tumor in women 20–30 years of age; m:f = 1:10; large, heterogenous tumor of uncertain dignity) and occasionally children) [31].
Mesenchymal tumors (sarcoma, cystic dermoid, lymphangioma, leiomyosarcoma, hemangiopericytoma, hemangioma, malignant fibrous histiocytoma, lymphoepithelial cysts, primary lymphoma) and secondary tumors (secondary lymphoma, metastases) of the pancreas are very rare and may be identified due to specific imaging features as peripheral nodular enhancement on dynamic imaging or high signal intensity in T1- and T2-weighted imaging as, for example, hemangioma or lipoma; otherwise, clinical context and histopathological proof will determine the diagnosis.
Key Point
PanNEN comprises a complex group of neoplasia which can be identified usually by imaging—beside very small tumors. Nevertheless, without clinical information and immune-histopathological correlation a precise diagnosis is not possible. In malignant transformation, the mismatch between tumor size and missing secondary signs of malignant spread as common in pancreatic cancer can be helpful.
9.5 Inflammatory Diseases of the Pancreas
9.5.1 Acute and Chronic Pancreatitis
Especially in the Western world the incidence of inflammatory diseases of the pancreas is increasing. The most common causes are biliary stone disease and alcohol abuse; nevertheless, a heterogenous variety of other causes as metabolic syndrome (hyperlipidemia types I, IV, V; hypercalcemia), drugs, infections, trauma (e.g., post surgery), and very rare conditions as alpha-1-antitrypsin deficiency, or mutations of protease serine (PRSS) and serine protease inhibitor Kazal type (SPINK1) has been identified as promoting factor. Depending on the type and severity of the inflammatory process no, mild or extensive morphological and functional deterioration is seen.
In general, the task of imaging is to monitor substantial structural changes and complications in acute pancreatitis, as parenchymal integrity vs. necrosis, peripancreatic inflammation, subtle and substantial fluid collections, formation of pseudo cysts and walled-off cysts, vascular and ductal affections (Fig. 9.4), and to assist in the clinical outcome prognosis together with the clinical assessment [32,33,34,35,36].
In chronic pancreatitis differentiation of long-term parenchymal and ductal changes from similar changes caused by neoplasms—e.g., focal or complete duct dilation, focal parenchymal lesions, and cystic degeneration—is mandatory to rule out complications and potential pancreatic cancer (Fig. 9.5). Perfusion MRI, DWI, and FDG-PET can be helpful in such cases. Nevertheless, the common clinical presentation with chronic abdominal pain in chronic pancreatitis does not correlate very well with imaging findings [35, 37,38,39,40,41,42].
9.5.2 Autoimmune Pancreatitis
In comparison to gall stone or alcohol-associated pancreatitis, autoimmune pancreatitis (AIP) is a rare disease in which the pathophysiological understanding has evolved significantly over the last years. The most common form, type 1 AIP is associated with IgG4-related diseases. Type 2 AIP is a different, even rarer entity and may be associated to chronic inflammatory bowel disease [43,44,45].
Both diseases have a similar clinical presentation with unspecific upper abdominal pain, obstructive jaundice, furthermore weight loss, and endo- and/or exocrine pancreatic insufficiency. Clinically, there is an overlap with pancreatic carcinoma, which cannot be solved by imaging alone since AIP may provide diffuse (“sausage” like) or focal (“mass forming”) enlargement of the gland together with segmental or focal duct strictures or dilatation. In consequence, the task of imaging and further parameters as serology and histology is the differentiation of both entities to guide each to the appropriate therapy and to avoid the small number, but unnecessary pancreatectomies (Fig. 9.6).
The International Association of Pancreatology defined diagnostic consensus criteria (Table 9.3) which provide a high accuracy in identifying an AIP. Both types of AIP usually present an excellent response to steroid therapy, however, in Type 1 AIP 60% of patients will have relapse. Over the last years the body of knowledge in AIP was growing significantly, identifying also AIP not otherwise specified (NOS) not meeting the criteria for Type 1 or 2 AIP, and AIP in the context of IgG4-related disease (IgG4-RD) characterized by immune-mediated fibroinflammatory multi-organ involvement [46, 47].
Key Point
Acute and chronic pancreatitis are common diseases, whereas the diagnosis is ruled by the clinical history and/or presentation. Imaging adds the crucial information on the severity and complications of the disease. In AIP imaging findings contribute to the cardinal criteria, however, imaging alone is not suitable to establish the diagnosis in AIP.
Take-Home Message
Pancreatic lesions encompass a wide variety of anatomical variants as well as benign and malignant neoplastic, and inflammatory diseases. The specific anatomical position of the gland and patient-specific conditions allows often only limited insight by ultrasound and endoscopy. Therefore, cross-sectional imaging by CT and MRI is of ample importance in assessing the pancreas and related disorders, allowing for a very high accuracy in depicting structural alterations of the parenchymal and ductal components of the gland. In the majority of clinical-diagnostic situations, there is no significant difference between the two imaging modalities with respect to diagnostic efficacy. However, MRI will reveal its superiority particularly in conditions where the assessment of ductal and intra- and peripancreatic cystic structures as well as subtle parenchymal changes is pivotal.
Change history
05 May 2023
The original version of this chapter was published with German letters in Table 9.3 which has been removed now, and we have retained the value “0.9/100.000” in the “Incidence” row.
References
Anupindi SA. Pancreatic and biliary anomalies: imaging in 2008. Pediatr Radiol. 2008;38(Suppl 2):S267–71.
Yu J, Turner MA, Fulcher AS, Halvorsen RA. Congenital anomalies and normal variants of the pancreaticobiliary tract and the pancreas in adults: part 1, biliary tract. AJR Am J Roentgenol. 2006;187(6):1536–43.
Nishino T, Toki F, Oi I, Oyama H, Hatori T, Shiratori K. Prevalence of pancreatic and biliary tract tumors in pancreas divisum. J Gastroenterol. 2006;41(11):1088–93.
Yu J, Turner MA, Fulcher AS, Halvorsen RA. Congenital anomalies and normal variants of the pancreaticobiliary tract and the pancreas in adults: part 2, pancreatic duct and pancreas. AJR Am J Roentgenol. 2006;187(6):1544–53.
Flejou JF. WHO classification of digestive tumors: the fourth edition. Ann Pathol. 2011;31(5 Suppl):S27–31.
Kim JY, Hong SM, Ro JY. Recent updates on grading and classification of neuroendocrine tumors. Ann Diagn Pathol. 2017;29:11–6.
Best LM, Rawji V, Pereira SP, Davidson BR, Gurusamy KS. Imaging modalities for characterising focal pancreatic lesions. Cochrane Database Syst Rev. 2017;4:CD010213.
Krishna SG, Rao BB, Ugbarugba E, Shah ZK, Blaszczak A, Hinton A, et al. Diagnostic performance of endoscopic ultrasound for detection of pancreatic malignancy following an indeterminate multidetector CT scan: a systemic review and meta-analysis. Surg Endosc. 2017;31(11):4558–67.
Xu MM, Sethi A. Imaging of the pancreas. Gastroenterol Clin N Am. 2016;45(1):101–16.
Swords DS, Firpo MA, Johnson KM, Boucher KM, Scaife CL, Mulvihill SJ. Implications of inaccurate clinical nodal staging in pancreatic adenocarcinoma. Surgery. 2017;162(1):104–11.
Allen PJ, Kuk D, Castillo CF, Basturk O, Wolfgang CL, Cameron JL, et al. Multi-institutional validation study of the American Joint Commission on Cancer (8th edition) changes for T and N staging in patients with pancreatic adenocarcinoma. Ann Surg. 2017;265(1):185–91.
Joo I, Lee JM, Lee DH, Lee ES, Paeng JC, Lee SJ, et al. Preoperative assessment of pancreatic cancer with FDG PET/MR imaging versus FDG PET/CT plus contrast-enhanced multidetector CT: a prospective preliminary study. Radiology. 2017;282(1):149–59.
Chiang AL, Lee LS. Clinical approach to incidental pancreatic cysts. World J Gastroenterol. 2016;22(3):1236–45.
Del Chiaro M, Verbeke C. Cystic tumors of the pancreas: opportunities and risks. World J Gastrointest Pathophysiol. 2015;6(2):29–32.
Doulamis IP, Mylonas KS, Kalfountzos CE, Mou D, Haj-Ibrahim H, Nasioudis D. Pancreatic mucinous cystadenocarcinoma: epidemiology and outcomes. Int J Surg. 2016;35:76–82.
Reid MD, Choi HJ, Memis B, Krasinskas AM, Jang KT, Akkas G, et al. Serous neoplasms of the pancreas: a clinicopathologic analysis of 193 cases and literature review with new insights on macrocystic and solid variants and critical reappraisal of so-called “serous cystadenocarcinoma”. Am J Surg Pathol. 2015;39(12):1597–610.
Esposito I, Schlitter AM, Sipos B, Kloppel G. Classification and malignant potential of pancreatic cystic tumors. Pathologe. 2015;36(1):99–112; quiz 3–4.
Ketwaroo GA, Mortele KJ, Sawhney MS. Pancreatic cystic neoplasms: an update. Gastroenterol Clin N Am. 2016;45(1):67–81.
Manfredi R, Ventriglia A, Mantovani W, Mehrabi S, Boninsegna E, Zamboni G, et al. Mucinous cystic neoplasms and serous cystadenomas arising in the body-tail of the pancreas: MR imaging characterization. Eur Radiol. 2015;25(4):940–9.
Megibow AJ, Baker ME, Morgan DE, Kamel IR, Sahani DV, Newman E, et al. Management of Incidental Pancreatic Cysts: a white paper of the ACR incidental findings committee. J Am Coll Radiol. 2017;14(7):911–23.
Elta GH, Enestvedt BK, Sauer BG, Lennon AM. ACG clinical guideline: diagnosis and management of pancreatic cysts. Am J Gastroenterol. 2018;113(4):464–79.
Tanaka M. International consensus on the management of intraductal papillary mucinous neoplasm of the pancreas. Ann Transl Med. 2015;3(19):286.
Adamova D, Aggarwal MM, Aglieri Rinella G, Agnello M, Agrawal N, Ahammed Z, et al. Production of sigma (1385)± and theta (1530)0 in p–pb collisions at √sNN = 5.02 TeV. Eur Phys J C Part Fields. 2017;77(6):389.
European study group on cystic tumours of the P. European evidence-based guidelines on pancreatic cystic neoplasms. Gut. 2018;67(5):789–804.
WGO practice guideline: pancreatic cystic lesions; 2019. https://www.worldgastroenterology.org/guidelines/pancreatic-cystic-lesions/pancreatic-cystic-lesions-english
Tanaka M, Fernandez-Del Castillo C, Kamisawa T, Jang JY, Levy P, Ohtsuka T, et al. Revisions of international consensus Fukuoka guidelines for the management of IPMN of the pancreas. Pancreatology. 2017;17(5):738–53.
Manfredi R, Bonatti M, Mantovani W, Graziani R, Segala D, Capelli P, et al. Non-hyperfunctioning neuroendocrine tumours of the pancreas: MR imaging appearance and correlation with their biological behaviour. Eur Radiol. 2013;23(11):3029–39.
De Robertis R, Cingarlini S, Tinazzi Martini P, Ortolani S, Butturini G, Landoni L, et al. Pancreatic neuroendocrine neoplasms: magnetic resonance imaging features according to grade and stage. World J Gastroenterol. 2017;23(2):275–85.
Dromain C, Deandreis D, Scoazec JY, Goere D, Ducreux M, Baudin E, et al. Imaging of neuroendocrine tumors of the pancreas. Diagn Interv Imaging. 2016;97(12):1241–57.
Tamm EP, Bhosale P, Lee JH, Rohren EM. State-of-the-art imaging of pancreatic neuroendocrine tumors. Surg Oncol Clin N Am. 2016;25(2):375–400.
Barral M, Faraoun SA, Fishman EK, Dohan A, Pozzessere C, Berthelin MA, et al. Imaging features of rare pancreatic tumors. Diagn Interv Imaging. 2016;97(12):1259–73.
Banks PA. Acute pancreatitis: landmark studies, management decisions, and the future. Pancreas. 2016;45(5):633–40.
Sahu B, Abbey P, Anand R, Kumar A, Tomer S, Malik E. Severity assessment of acute pancreatitis using CT severity index and modified CT severity index: correlation with clinical outcomes and severity grading as per the revised Atlanta classification. Indian J Radiol Imaging. 2017;27(2):152–60.
Tyberg A, Karia K, Gabr M, Desai A, Doshi R, Gaidhane M, et al. Management of pancreatic fluid collections: a comprehensive review of the literature. World J Gastroenterol. 2016;22(7):2256–70.
Gupta P, Dawra S, Chandel K, Samanta J, Mandavdhare H, Sharma V, et al. Fat-modified computed tomography severity index (CTSI) is a better predictor of severity and outcome in patients with acute pancreatitis compared with modified CTSI. Abdom Radiol (NY). 2020;45(5):1350–8.
Gupta P, Kumar MP, Verma M, Sharma V, Samanta J, Mandavdhare H, et al. Development and validation of a computed tomography index for assessing outcomes in patients with acute pancreatitis: “SMART-CT” index. Abdom Radiol (NY). 2021;46(4):1618–28.
Anaizi A, Hart PA, Conwell DL. Diagnosing chronic pancreatitis. Dig Dis Sci. 2017;62(7):1713–20.
DiMagno EP, DiMagno MJ. Chronic pancreatitis: landmark papers, management decisions, and future. Pancreas. 2016;45(5):641–50.
Dominguez-Munoz JE, Drewes AM, Lindkvist B, Ewald N, Czako L, Rosendahl J, et al. Recommendations from the united European gastroenterology evidence-based guidelines for the diagnosis and therapy of chronic pancreatitis. Pancreatology. 2018;18(8):847–54.
Dominguez-Munoz JE, Drewes AM, Lindkvist B, Ewald N, Czako L, Rosendahl J, et al. Corrigendum to “Recommendations from the United European Gastroenterology evidence-based guidelines for the diagnosis and therapy of chronic pancreatitis” [Pancreatology 18(8) (2018) 847–854]. Pancreatology. 2020;20(1):148.
Lohr JM, Dominguez-Munoz E, Rosendahl J, Besselink M, Mayerle J, Lerch MM, et al. United European gastroenterology evidence-based guidelines for the diagnosis and therapy of chronic pancreatitis (HaPanEU). United European Gastroenterol J. 2017;5(2):153–99.
Park WG. Clinical chronic pancreatitis. Curr Opin Gastroenterol. 2016;32(5):415–21.
Manfredi R, Frulloni L, Mantovani W, Bonatti M, Graziani R, Pozzi MR. Autoimmune pancreatitis: pancreatic and extrapancreatic MR imaging-MR cholangiopancreatography findings at diagnosis, after steroid therapy, and at recurrence. Radiology. 2011;260(2):428–36.
Madhani K, Farrell JJ. Autoimmune pancreatitis: an update on diagnosis and management. Gastroenterol Clin N Am. 2016;45(1):29–43.
Vasaitis L. IgG4-related disease: a relatively new concept for clinicians. Eur J Intern Med. 2016;27:1–9.
de Pretis N, Vieceli F, Brandolese A, Brozzi L, Amodio A, Frulloni L. Autoimmune pancreatitis not otherwise specified (NOS): clinical features and outcomes of the forgotten type. Hepatobiliary Pancreat Dis Int. 2019;18(6):576–9.
Yoo BW, Song JJ, Park YB, Lee SW. 2019 American College of Rheumatology/European league against rheumatism classification criteria for IgG4-related disease by Wallace et al. Ann Rheum Dis. 2020;
Okazaki K, Kawa S, Kamisawa T, Ikeura T, Itoi T, Ito T, et al. Amendment of the Japanese consensus guidelines for autoimmune pancreatitis, 2020. J Gastroenterol. 2022;57(4):225–45.
Kawa S, Kamisawa T, Notohara K, Fujinaga Y, Inoue D, Koyama T, et al. Japanese clinical diagnostic criteria for autoimmune pancreatitis, 2018: revision of Japanese clinical diagnostic criteria for autoimmune pancreatitis, 2011. Pancreas. 2020;49(1):e13–e4.
Umehara H, Okazaki K, Kawa S, Takahashi H, Goto H, Matsui S, et al. The 2020 revised comprehensive diagnostic (RCD) criteria for IgG4-RD. Mod Rheumatol. 2021;31(3):529–33.
Shimosegawa T, Chari ST, Frulloni L, Kamisawa T, Kawa S, Mino-Kenudson M, et al. International consensus diagnostic criteria for autoimmune pancreatitis: guidelines of the International Association of Pancreatology. Pancreas. 2011;40(3):352–8.
O'Reilly DA, Malde DJ, Duncan T, Rao M, Filobbos R. Review of the diagnosis, classification and management of autoimmune pancreatitis. World J Gastrointest Pathophysiol. 2014;5(2):71–81.
