Abstract
Objective
This meta-analysis compared the quality of lung collapse and the resultant adverse reactions between the use of double-lumen endotracheal tubes (DLT) and bronchial blockers (BB) in minimally invasive thoracic surgery.
Methods
A search was performed in five bibliographic databases, namely PubMed, Springer, Medline, EMBASE, and Cochrane Library ignoring the original language, which identified five randomized controlled trials (RCTs) published on or before December 31, 2021. These studies were subsequently analyzed. All included studies compared the efficacy and safety of DLT and BB as a lung isolation technique in surgery. The methodological quality of each study was assessed by the Cochrane Collaboration’s risk of bias tool. The quality of lung collapse and the malposition rate were adopted as the main outcome indicators. Alternatively, the intubation time and the incidence of postoperative sore throat were adopted as secondary indicators.
Results
When either DLT or BB were utilized in minimally invasive thoracic surgery, no differences were observed in the quality of lung collapse (odds ratio [OR], 1.00; 95% confidence interval [CI], 0.63 to 1.58), the intubation time (mean difference [MD], 0.06; 95% CI, -1.02 to 1.14), or the malposition rate (OR, 0.88; 95% CI, 0.37 to 2.06). However, the incidence of postoperative sore throat among patients treated with BB was significantly lower than that among patients treated with DLT (OR, 5.25; 95% CI, 2.55 to 10.75).
Conclusion
When utilized in minimally invasive thoracic surgery, the quality of lung collapse with DLT was identical to that with BB. However, patients treated with the latter demonstrated a significantly lower incidence of postoperative sore throat.
Similar content being viewed by others
Explore related subjects
Discover the latest articles, news and stories from top researchers in related subjects.Introduction
Selective bronchial intubation was first used in practice in 1931 as a solution to thoracotomy-related pneumothorax [1]. Subsequent innovations in selective lung ventilation techniques have since greatly promoted the rapid development of thoracic surgery. In addition, the wide use of video technology, endoscopic instruments, and minimally invasive techniques has expanded the application of one-lung ventilation (OLV) from lung surgery to surgeries on the esophagus, heart, and other organs [2, 3].
At present, lung isolation remains the basis of thoracic anesthesia. In the past, the poor quality of atelectasis treatment could be compensated by manual extrusion and exposure. However, with the popularization of thoracoscopic surgery, the number of incisions in thoracic surgery has reduced from three to one, which, despite meeting the definition of minimally invasive surgery, poses higher requirements for atelectasis treatment. Existing clinical lung isolation techniques mainly use either DLT or BB. Multiple studies [4,5,6] have indicated that anesthesiologists prefer the former owing to the common belief that it provides a better quality of atelectasis treatment. However, neither the strong stimulation of double-lumen intubation nor the associated risk of postoperative sore throat can be ignored. Therefore, which technique is safer and more convenient in thoracoscopic surgery remains controversial.
The purpose of this study was to perform a systematic review and meta-analysis on RCTs comparing the applications of DLT and BB in thoracoscopic surgery, in order to identify differences in the quality of lung collapse, malposition rate, and incidence of postoperative sore throat between the two techniques.
Methods
This meta-analysis followed the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [7] and was registered in PROSPERO on February 16th, 2022 (registration number: CRD42022302483). Subsequently, a systematic search was conducted among databases including PubMed, Springer, Medline, EMBASE, and Cochrane Library using keywords such as “double-lumen tube,” “bronchial blocker,” “lung isolation,” “one-lung ventilation,” and “thoracic surgery.” In addition, a list of included literature and related comments was finalized after reviewing the references. Only English literature was included in the study.

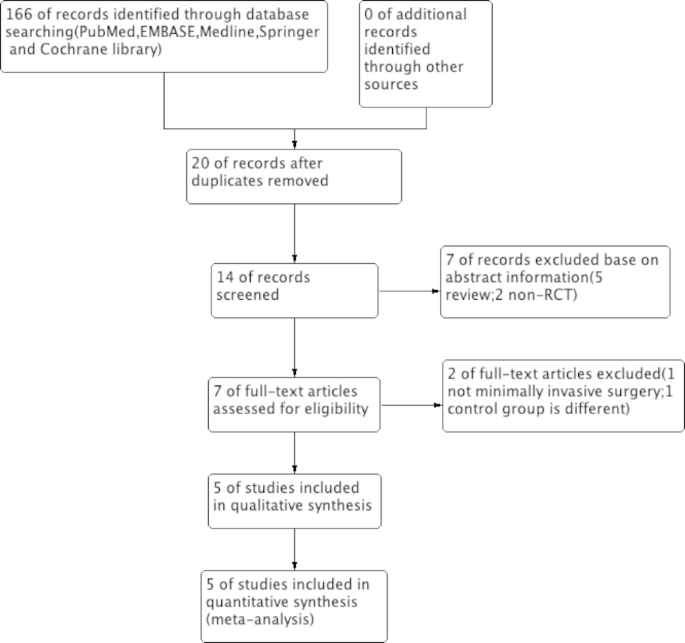

Path diagram for inclusion of studies
Two authors (Y.Y.X and Q.C) independently determined the inclusion criteria based on the consensus between the two researchers. Conflicts were resolved by consulting the opinion of a third author (L.C). The quality of atelectasis treatment and the malposition rate were adopted as the main outcome indicators. The intubation time and the incidence of postoperative sore throat were adopted as secondary indicators. The results of the trial selection process are presented in the PRISMA flowchart (Fig. 1).
Extraction of research characteristics and data
In addition to the names of the main authors, publication year, numbers of patients in each group, and types of catheters, this meta-analysis also collected data on the quality of dislocation rate, intubation time, malposition rate, and incidence of complications (Table 1). The data were extracted independently by two authors, and conflicts were resolved through reviews and discussions. Data on the mean value, standard deviation (SD), and the number of patients (n) were also extracted if they were reported or could be calculated.
Evaluation of research quality and risk of bias
The quality of each RCT was assessed by two researchers (Y.Y.X and Q.C) using Cochrane Collaboration’s risk of bias tool. Various types of bias (selection, performance, detection, attribution, reporting, and other forms) were included in the assessment (Fig. 2). Subsequently, a quality score was generated for each RCT based on the consensus between the two authors. Conflicts were resolved by consulting the opinion of a third author (L.C). The quality score of the RCT was not considered the key factor for exclusion.
Statistical analysis
All data analysis was performed using Review Manager 5.4 software (Cochrane Collaboration, Oxford, UK) and Stata 17 software (Stata Corp, College Station, TX, USA). Continuous data (intubation time) were expressed as mean deviations (MDs) or standard mean differences (SMDs) and 95% confidence intervals (CIs). Dichotomous data (quality of lung collapse, malposition rate, and incidence of postoperative sore throat) were expressed as odds ratios (ORs) and 95% CIs. The χ2 test (P value and I2 value) was used to evaluate heterogeneity. A random-effects model was selected in case of heterogeneity (P ≤ 0.05 or I2 > 50%) and a fixed-effects model was selected in case of homogeneity (P > 0.05 or I2 ≤ 50%).
Results
Literature selection and characteristics
A total of five 5 eligible RCTs were identified, involving 223 surgical patients. The characteristics of patients and the adopted intervention measures are listed in Table 1. All five RCTs compared the clinical safety of DLT and BB.
Quality of lung collapse
Four RCTs (n = 164) reported the quality of lung collapse [8,9,10, 12], which was evaluated as either excellent, fair, or poor. There was no difference in the quality of lung collapse between the use of a DLT or BB in patients undergoing minimally invasive thoracic surgery (OR, 1.00; 95% CI, 0.63 to 1.58; I2 = 0%; P = 0.97) (Fig. 3). Implementing sensitivity analyses and Egger tests for publication bias did not significantly alter these results (P = 0.919).
Device malposition rate
Four RCTs (n = 189) recorded incidences of dislocation during lung isolation [8, 10,11,12]. No differences in the malposition rate were observed when either DLT or BB were utilized (OR, 0.88; 95% CI, 0.37 to 2.06; I2 = 0%; P = 0.77) (Fig. 4). Implementing sensitivity analyses and Egger tests for publication bias did not significantly alter these results (P = 0.133).
Time for device placement
Four RCTs (n = 185) recorded the time required for placing the two devices [8, 10,11,12]. The time required to place the device in the correct position was not significantly different (RR, 0.06; 95% CI, -1.02 to 1.14; I2 = 79%; P = 0.91) (Fig. 5). Implementing sensitivity analyses and Egger tests for publication bias did not significantly alter these results (P = 0.978).
Incidence of postoperative sore throat
Three RCTs (n = 154) recorded the incidence of postoperative sore throat [10,11,12]. The rate of postoperative sore throat was lower among patients treated with BB than among those treated with DLT (OR 5.23; 95% CI, 2.55 to 10.75; I2 = 0%; P < 0.00001) (Fig. 6). Implementing sensitivity analyses and Egger tests for publication bias did not significantly alter these results (P = 0.263). Implementing sensitivity analysis for the current meta-analysis was also performed, indicating that the results were reliable and statistically stable (Fig. 7).
Discussion
This meta-analysis showed that while no differences were observed in the quality of lung collapse, device placement time, or malposition rate between BB and DLT, the incidence of postoperative sore throat with the former was lower than that with the latter.
During the anesthesia for minimally invasive thoracic surgery, lung isolation is mainly realized via BB and DLT [13, 14]. Some RCTs attempted to determine which of the two techniques was superior [15, 16]. A study suggested that the intubation time of BB was longer, while their malposition rate was higher [17]. An observational study that DLT provided better lung collapse and had a lower associated malposition rate, making it the safest choice. Left-DLT (L-DLT) was found to be the primary choice device for OLV also in the case of predicted or unpredicted difficult airways [18]. By contrast, another meta-analysis comparing the use of DLT and BB reported that despite a higher malposition rate, the operating time of BB was shorter [19]. Our study showed that there were no significant differences in either the intubation time or the malposition rate between DLT and BB.
Alternatively, the fact that DLT yields a higher risk of airway injury is well established [15, 20]. A study indicated that airway injury was most likely caused by the instrument used. Since DLTs have a larger diameter compared to BBs, they are more likely to damage the airway during intubation and extubation [20]. Another study suggested that airway damage was likely associated with operator skill [21]. Although a different study reported that the higher incidence of airway injury in the intubation of double-lumen endotracheal tubes was possibly related to their high dislocation rate [17]. A meta-analysis found that the incidences of postoperative hoarseness, sore throat, and air injury with double-lumen endotracheal tubes were substantially higher than those with bronchial blockers, indicating scope for improvement in double-lumen endotracheal tubes in the future.
For surgeries involving difficult airways or prolonged thoracic and esophageal surgeries, when postoperative respiratory support is needed, the fact that the endotracheal tube does not need to be replaced when BB are used reduces the risk of secondary airway injury and edema, which makes it superior to DLT. However, DLT play a crucial role in special operations such as pneumonectomy and bronchotomy [16].
When choosing a DLT or BB, a multidisciplinary intervention is necessary for the preoperative evaluation of the thoracic patient and whether to enter the ICU, with a full range of assessments, such as the patient’s gender, age, weight, cardiac function, lung function, and the need for postoperative organ support. These are all issues that need to be considered. In the perioperative multidisciplinary team, the anesthesiologist plays a leading role in optimizing the treatment strategy. We can choose DLT or BB according to different needs [22]. Some studies [23] still refer to DLT as the gold standard in various surgical procedures requiring lung isolations; moreover, it was preferred by most thoracic anesthesiologists. Considering the individual variation among patients, anesthesiologists should be proficient in using both DLT and BB.
This meta-analysis has some limitations. Most of the included literature compared the use of DLT and BB in the left lung, whereas few compared their uses in the right lung. This was likely related to the anatomy and ventilation requirement of the lung.
Conclusion
This meta-analysis showed that there were no differences in the quality of lung collapse between DLT and BB in minimally invasive thoracic surgery. However, patients treated with DLT had a higher incidence of postoperative airway injury. Despite this, DLT still play an irreplaceable role in certain surgical procedures.
Availability of data and materials
The datasets generated and analyzed during the current study are available from the corresponding author upon reasonable request.
Abbreviations
- OR:
-
Odds ratio
- CI:
-
Confidence interval
- MD:
-
Mean difference
- RCT:
-
randomized controlled trials
- DLT:
-
double-lumen endotracheal tubes
- BB:
-
bronchial blockers.
References
Brodsky JB, Lemmens HJ. The history of anesthesia for thoracic surgery. Minerva Anestesiol. 2007;73:513–24.
Huybrechts I, Tuna T, Szegedi LL. Lung separation in adult thoracic anesthesia. Saudi J Anaesth. 2021;15(3):272–9.
Bermede O. Comparison of EZ blocker and left double-lumen endotracheal tube for one lung ventilation in minimally invasive cardiac surgery. J Surg Med. 2021;5(7):00–0.
Shelley B, Macfie A, Kinsella J. Anesthesia for thoracic surgery: a survey of UK practice. J Cardiothorac Vasc Anesth. 2011;25:1014–7.
Eldawlatly A, Turkistani A, Shelley B, El-Tahan M, Macfie A, Kinsella J, et al. Thoracic-anaesthesia Group Collaborators. Anesthesia for thoracic surgery: a survey of middle eastern practice. Saudi J Anaesth. 2012;6:192–6.
Della Rocca G, Langiano N, Baroselli A, Granzotti S, Pravisani C. Survey of thoracic anesthetic practice in Italy. J Cardiothorac Vasc Anesth. 2013;27:1321–9.
Shamseer L, Moher D, Clarke M, Ghersi D, Liberati A, Petticrew M,et al. Preferred reporting items for systematic review and meta-analysis protocols (PRISMA-P) 2015: elaboration and explanation. BMJ. 2015;350:g7647.
Bauer C, Winter C, Hentz JG, Ducrocq X, Steib A, Dupeyron JP. Bronchial blocker compared to double-lumen tube for one-lung ventilation during thoracoscopy. Acta Anaesthesiol Scand. 2001;45:250–4.
Bussières JS, Somma J, Del Castillo JL, Lemieux J, Conti M, Ugalde PA,et al. Bronchial blocker versus left double-lumen endotracheal tube in video-assisted thoracoscopic surgery: a randomized-controlled trial examining time and quality of lung deflation. Can J Anaesth. 2016;63:818–27.
Lu Y, Dai W, Zong Z, Xiao Y, Wu D, Liu X,et al. Bronchial blocker versus left double-lumen endotracheal tube for one-lung ventilation in right video-assisted thoracoscopic surgery. J Cardiothorac Vasc Anesth. 2018;32:297–301.
Zhang C, Yue J, Li M, Jiang W, Pan Y, Song Z, et al. Bronchial blocker versus double-lumen endobronchial tube in minimally invasive cardiac surgery. BMC Pulm Med. 2019;19:207.
Zhang TH, Liu XQ, Cao LH, Fu JH, Lin WQ. A randomised comparison of the efficacy of a Coopdech bronchial blocker and a double-lumen endotracheal tube for minimally invasive esophagectomy. Transl Cancer Res. 2020;9(8):4686–92.
Campos JH, Kernstine KH. A comparison of a left-sided broncho-cath with the torque control blocker univent and the wire-guided blocker. Anesth Analg. 2003;96:283–9.
Cohen E. Management of one-lung ventilation. Anesthesiol Clin North Am. 2001;19:475–95.
Zhong T, Wang W, Chen J, Ran L, Story DA. Sore throat or hoarse voice with bronchial blockers or double-lumen tubes for lung isolation: a randomised, prospective trial. Anaesth Intensive Care. 2009;37:441–6.
Narayanaswamy M, McRae K, Slinger P, Dugas G, Kanellakos GW, Roscoe A, et al. Choosing a lung isolation device for thoracic surgery: a randomized trial of three bronchial blockers versus double-lumen tubes. Anesth Analg. 2009;108:1097–101.
Mourisse J, Liesveld J, Verhagen A, van Rooij G, van der Heide S, Schuurbiers-Siebers O, et al. Efficiency, efficacy, and safety of EZ-blocker compared with left-sided double-lumen tube for one-lung ventilation. Anesthesiology. 2013;118:550–61.
Langiano N, Fiorelli S, Deana C, Baroselli A, Bignami EG, Matellon C, et al. Airway management in anesthesia for thoracic surgery: a “real life” observational study. J Thorac Dis. 2019;11(8):3257–69.
Clayton-Smith A, Bennett K, Alston RP, Adams G, Brown G, Hawthorne T, et al. A comparison of the efficacy and adverse effects of double-lumen endobronchial tubes and bronchial blockers in thoracic surgery: a systematic review and meta-analysis of randomized controlled trials. J Cardiothorac Vasc Anesth. 2015;29:955–66.
Knoll H, Ziegeler S, Schreiber JU, Buchinger H, Bialas P, Semyonov K, et al. Airway injuries after one-lung ventilation: a comparison between double-lumen tube and endobronchial blocker: a randomized, prospective, controlled trial. Anesthesiology. 2006;105:471–7.
Fitzmaurice BG, Brodsky JB. Airway rupture from double-lumen tubes. J Cardiothorac Vasc Anesth. 1999;13:322–9.
Della Rocca G, Vetrugno L, Coccia C, Pierconti F, Badagliacca R, Vizza CD, et al. Preoperative evaluation of patients undergoing lung resection surgery: defining the role of the anesthesiologist on a multidisciplinary team. J Cardiothorac Vasc Anesth. 2016;30(2):530–8.
Slinger P. Con: the new bronchial blockers are not preferable to double-lumen tubes for lung isolation. J Cardiothorac Vasc Anesth. 2008;22:925–9.
